How Portable Power Stations With Inverters Are Grounded

Most portable power stations connect the outlet’s grounding contact and exposed metal parts to an internal chassis or protective-earth path. Their inverter neutral may be floating or bonded to ground, depending on the model. For simple plug-in use, that is usually fine and no ground rod is needed. If you connect the unit to a home panel, a transfer switch, or certain appliances, you may need a proper neutral-ground bond and a grounding method the manufacturer approves.

What Does Grounding Mean on a Battery Power Station With an Inverter?

It means the metal parts and the outlet’s ground contact are joined to a protective path inside the unit. It does not automatically mean the unit is connected to the earth. Three terms get mixed up a lot: grounding, earthing, and bonding. Here is the plain difference.

• Grounding (earthing): a connection from metal parts or the system to the earth, often through a rod or the home’s grounding system.
• Equipment grounding: the green or bare ground wire in a cord. It ties the metal case of a device back to a safe path.
• Bonding: joining the AC neutral to ground at one point, usually at the source. In a house, this happens at the main panel.

A ground wire and a neutral-ground bond are not the same thing. You can have a chassis ground without a bond. Many people add one when they need the other, and that is where trouble starts.

One caveat on sources: most public grounding rules are written for engine generators. A battery power station is not an engine generator, but the same principles apply, so the guidance below borrows from generator rules and labels them as such.

Is the Neutral Bonded to Ground on Portable Power Stations?

On many models it is not, but it varies by model and sometimes by operating mode. A floating neutral means the neutral line inside the inverter is not connected to ground or the case. The AC output “floats” on its own. A bonded neutral ties neutral to ground inside the unit or at the source, much like household service bonding.

Most portable power stations are built as floating-neutral units. Many generators are the opposite, since some bond neutral to the frame. The design choice matters because it decides what you must do before you connect to anything bigger than a cord.

Is a Three-Prong Outlet Enough to Make a Power Station Grounded?

No. A three-prong receptacle tells you a ground contact exists, not how neutral is configured and not whether anything connects to earth. Two units with identical-looking outlets can behave differently: one may bond neutral to the ground contact, the other may leave neutral floating while still wiring the ground contact to the chassis.

The ground contact does a specific job. It links a connected appliance’s metal case to the unit’s chassis, so a fault inside the appliance has a low-resistance route back to the source instead of energizing the case. That is equipment grounding. It works without any earth connection.

Does a Portable Power Station Need to Be Connected to a Ground Rod?

Usually not for direct plug-in use. OSHA states that a portable generator frame is not necessarily required to be connected to earth when it supplies only equipment through its own receptacles, provided exposed metal parts and receptacle equipment-grounding terminals are bonded to the frame and grounding continuity is maintained (see OSHA’s grounding requirements for portable generators). The same OSHA guidance says that when a portable source supplies a separately derived system, the neutral must be bonded to the frame. That does not mean every direct plug-in use needs a ground rod.

When grounding is usually not required

If you plug a lamp, laptop charger, fan, or tool straight into the unit’s outlet, a ground rod is generally not needed. The device’s own cord and the unit’s built-in protection handle the job. Check the manual for the maker’s exact wording.

When grounding or bonding is required

Connecting to a home panel through a transfer switch generally requires correct grounding and bonding behavior. Connecting a portable source to a structure through a transfer switch can require connection to the structure’s grounding-electrode system, depending on the system design and applicable code. Some appliances and GFCI-protected circuits also expect a bonded source to work as designed. The manual should say which case applies to your model.

When you need a bond instead of just a ground wire

A ground wire protects a metal case. A bond gives fault current a return path so a breaker or GFCI can trip. If your system relies on that trip, such as a transfer switch feeding house circuits, you need to know where the bond lives. It should exist in one place only.

Worked example: why a ground rod alone does not clear a fault

The numbers below are illustrative round figures, not measurements. Say a 120V hot wire touches the metal case of a tool, and the only link back to the source is through a ground rod at the tool and a ground rod at the source.

• Rod path: assume 25 ohms for each rod (a commonly cited target for a single driven rod). Total is about 50 ohms, so fault current is 120 / 50 = 2.4 A. That is far below a 15A breaker rating, so nothing trips, and the tool case stays energized.
• Equipment-grounding conductor path: assume about 0.5 ohm total loop through the cord and chassis. Fault current is 120 / 0.5 = 240 A, a large current that a protective device can react to.

Two points follow. First, earth is a poor return path, so a rod does not make a fault trip a breaker. Protective-earth continuity through the cord and chassis does that work. Second, inverters limit their output current, so a battery unit may shut down on overload rather than behave like a utility service. That is why a GFCI at the point of use matters: it trips on a leakage of a few milliamps and does not depend on a high fault current.

Camping: You run a 120V fan and a phone charger from a floating-neutral unit. Both plug straight in. No bond is needed. Leave it as is.

Home backup: You feed a panel through a transfer switch. The panel expects a bonded neutral somewhere upstream. If the unit floats and the switch does not bond, there is no fault return path. You need either a unit that is bonded by design or a method the maker approves. Do not guess.

How Can I Tell Whether My Power Station Has a Floating Neutral?

Start with the manual and the maker’s support page. Look for the words “floating neutral” or “neutral-ground bond.” Some guidance also suggests a continuity test between neutral and ground at the outlet. Do this with the unit powered off and nothing plugged in.

Know the limits of that test. Some inverters only connect their output when running, and some units change behavior in pass-through mode or when a relay closes. A reading taken with the unit off may not match the state it is in when powered on, so treat it as a clue and not as proof.

Use a multimeter you trust. If any reading confuses you, stop and ask a licensed electrician.

Floating, Bonded and Pass-Through Modes Compared

The same unit can behave differently depending on how it is powered. The table summarizes the general pattern. Individual models differ, so confirm each row against your manual.

Why Do Some GFCI Devices Trip When Connected to a Portable Power Station?

The usual cause is neutral current finding a second path back to the source, or a bond in the wrong place. A GFCI compares current on the hot and neutral conductors. If some neutral current returns through the ground wire instead, the two no longer match and the device trips.

• Double bond: a unit that already bonds neutral to ground, plus a bonding plug or a downstream bond, lets neutral current split between two paths.
• Shared neutrals: extension cords or adapters that join neutral and ground can have the same effect.
• Leakage from the load: a damaged cord or a wet connection leaks current to ground, and the GFCI is working as intended.
• Tester warnings: a floating output can make some outlet testers show a fault even though a plug-in GFCI works normally. Use the GFCI’s own test button as the real check.

Buyers frequently mention confusion over this, and unclear manuals add to it. If a GFCI trips repeatedly, unplug the load, test the GFCI on its own, and then add loads one at a time.

Grounding Methods Compared

Some manufacturers provide a grounding terminal or lug for chassis grounding on certain units. One cited generator guide recommends a copper rod and copper wire for extra safety grounding on certain generators and inverters. Use only what your maker allows. The table shows how the common methods differ.

Can you connect a portable power station to a ground rod?

Sometimes. If the maker lists a ground terminal and recommends a rod, use a copper rod and copper wire as directed. If the manual does not mention it, ask first. A rod does not fix a bonding problem, and a rod alone is not a safe plan for home backup. OSHA also advises following the manufacturer’s grounding instructions and keeping grounding connections tight, as covered in OSHA’s guide to using portable generators safely.

Is a Neutral-Ground Bonding Plug Safe?

It can be, but only if the unit is designed for it. A bonding plug adds a neutral-ground connection at the outlet. Some inverters can be damaged if a bond is added when they were not built for one. Other units are already bonded, and a plug would create a second bond.

Before you use one, confirm three things: the unit is floating, the maker permits a bonding plug, and your use case truly needs a bond. If one answer is no, skip it.

RVs, Transfer Switches, and Home Backup

Yes, these setups change the requirements. The table gives a quick view. Treat it as a starting point and not as a code ruling.

How should I ground a portable power station used in an RV or camper?

Follow the RV and power station manuals, and do not add a rod or bond by default. Check whether the shore-power inlet or onboard systems expect a bond. In many RVs the panel keeps neutral separate from chassis ground and relies on the source to supply the bond, so a floating source may leave the system with no bond at all. Some RV systems trip or show faults on a floating source. A vehicle sitting on rubber tires is not a reliable earth connection either, so a short ground wire to the ground is not a substitute for the RV’s own equipment-grounding path.

Can I connect a portable power station to my home’s electrical panel?

Only through properly installed equipment, never by plugging a cord into a wall outlet. A male-to-male cord energizes the prongs of the plug and can backfeed the utility line, endangering line workers and anyone who touches the cord. Have a licensed electrician set up the connection, because code rules vary by location.

Do I need a transfer switch or interlock for backup power?

Yes, for any connection to house circuits. A transfer switch or a listed interlock keeps the utility and the portable source from being connected at the same time. It also decides where neutral and ground are bonded and joined, which is the part most guides skip. Confirm the switch type (it may switch neutral or leave it solid) and that your unit’s bonding design is compatible with it.

What Grounding and GFCI Precautions Apply in Wet Locations or on Construction Sites?

Use GFCI protection at the point of use, keep connections off wet ground, and follow the workplace rules if you are on a job. OSHA requires or recommends GFCI protection for applicable 120-volt, 15- and 20-ampere receptacles on construction sites, with the cited trip threshold described as approximately 5 milliamperes plus or minus 1 milliampere. OSHA also identifies a two-wire, single-phase portable generator rated at 5 kW or less as an exception to certain construction-site GFCI requirements when its circuit conductors are insulated from the frame and other grounded surfaces, as explained in OSHA’s interpretation on wiring, extension cords and grounding. Do not assume your battery unit qualifies for that exception without checking its documentation.

• Place the unit on dry, level ground under cover, and keep cord connections out of puddles.
• Use outdoor-rated, grounded extension cords, and inspect them for cuts.
• Add a portable GFCI at the end of the cord if the unit does not have GFCI outlets.
• Do not drive a rod into the ground as a substitute for GFCI protection.

What Happens If You Ground a Power Station the Wrong Way

• Inverter damage: an added bond on a unit not designed for it can harm the inverter.
• Conflicting bonds: two bonds can send current down unexpected paths and trip GFCIs.
• No fault path: a floating source feeding a panel may not trip a breaker in a fault.
• Shock risk: a poor adapter can leave metal parts live.

These are the main reasons to confirm the design before adding any wire or plug.

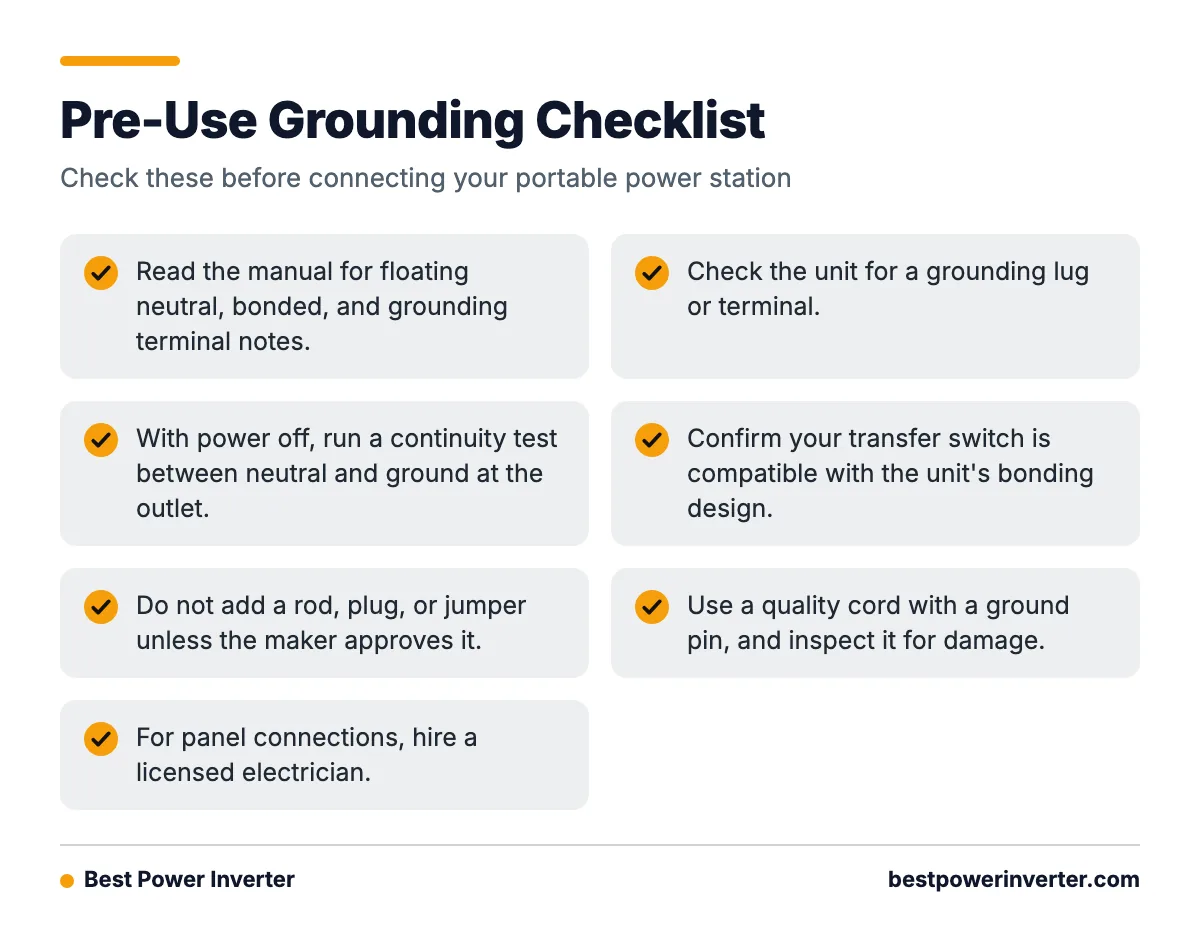

Pre-Use Checklist

1. Read the manual for “floating neutral,” “bonded,” and grounding terminal notes.
2. Check the unit for a grounding lug or terminal.
3. With power off, run a continuity test between neutral and ground at the outlet.
4. Confirm your transfer switch is compatible with the unit’s bonding design.
5. Do not add a rod, plug, or jumper unless the maker approves it.
6. Use a quality cord with a ground pin, and inspect it for damage.
7. For panel connections, hire a licensed electrician.

Decision checklist by situation

Manufacturer Manual Checklist

Manuals are sometimes vague on grounding, so look for these items and contact support if any is missing:

• AC outlet wiring: is the ground contact connected to the chassis?
• Neutral-ground bond: floating, bonded, or mode-dependent (inverter versus pass-through)?
• Grounding terminal: is there a lug, and what does the maker say to connect to it?
• GFCI test behavior: do built-in GFCI outlets exist, and how should they be tested?
• Transfer-switch compatibility: which switch types or accessories are approved, and does the maker allow home-panel connection at all?

For more detail, see the maker guidance on generator grounding and this overview of grounded vs floating neutral in power stations.

What do owners say?

Summarised from owner reviews and long-term user reports; individual experiences vary.

Frequently Asked Questions

How are portable power stations with inverters grounded?

Most use a floating neutral, so the AC output is not bonded to ground inside the unit. For direct plug-in loads, the device’s own ground pin and the unit’s design are usually enough. Some models add a chassis lug. For transfer switches or home panels, you need correct bonding behavior and a method the manufacturer approves.

Do portable power stations with inverters need to be grounded?

Not always. Direct cord-and-plug use often does not need a ground rod. Home backup, transfer switches, and some RV setups may need grounding or bonding. Check the manual for your model.

What is the difference between grounding and bonding on a portable inverter?

Grounding connects metal parts or the system to a ground path. Bonding joins neutral to ground at one point so fault current has a return path. You can have one without the other.

How can you tell whether a specific power station already has neutral-ground bonding?

Read the manual for floating or bonded wording. You can also run a continuity test between neutral and ground at the outlet with the unit off and nothing plugged in. Continuity suggests a bond. Some units change behavior when powered or in pass-through, so if unsure, ask the maker.

Is it safe to use a neutral-ground bonding plug with a portable power station?

Only if the maker allows it and the unit is floating. Some inverters can be damaged by an added bond. If the unit is already bonded, the plug would create a second bond.

Can you connect a portable power station to a ground rod?

Only if the maker provides a ground terminal and recommends it. Use copper rod and copper wire as directed. A rod does not replace proper bonding for home backup.

Why does my GFCI trip only when I use a bonding plug or adapter?

The adapter likely creates a second neutral-ground connection, so some neutral current returns through the ground wire and the GFCI sees an imbalance. Remove the adapter, check the manual, and test again.
