Size the inverter at 6000W to 6250W for a 5000W continuous load, since that adds roughly 20% to 25% headroom over the 5000W minimum. Pair it with a pure-sine design, a surge rating that covers your largest motor startup, and a 24V or preferably 48V battery bank. This guide is for DIY solar, RV, off-grid, and backup-power buyers running about 5,000 watts from batteries.
Quick answer
Buy a pure-sine inverter rated 6000W to 6250W continuous for a 5000W load, running from a 48V bank. A 5000W unit works only with no margin. Check the surge rating separately if motors are involved.
- Best for heaters and resistive loads: 6000W, 48V
- Best for pumps and compressors: 6000-8000W with high surge
- Best for real loads under 4,000W: 5000W
- 5000W continuous load + 20% headroom = 6000W inverter. The 1.25 multiplier gives 6250W.
- Check the surge rating separately. Motors can pull 2-3 times their running watts at startup, and some loads more.
- A 5000W load pulls about 417A at 12V, 208A at 24V, and 104A at 48V, before losses.
- Choose 24V or, better, 48V for this size. 12V needs extreme cable and battery capability.
- Inverter size is set in watts. VA matters only when the maker lists VA instead.
- What 5000W Actually Means
- Is a 5000W Inverter Enough for a 5000W Load?
- How Much Surge Power Does a 5000W Load Need?
- How Many Amps Does a 5000W Inverter Draw?
- What Cable Size and Fuse Are Needed?
- How Long Will a Battery Run a 5000W Load?
- Do I Need a Pure-Sine-Wave Inverter?
- Can It Run Motors, Fridges, Pumps, or Air Conditioners?
- Worked Examples
- 5000W vs 6000W vs 8000W
- Common Sizing Mistakes
- Buyer Checklist
- Frequently Asked Questions
What 5000W Actually Means
People mix up two numbers. Watts (W) measure how fast power is used. Watt-hours (Wh) measure how much energy a battery stores. A 5000W load is a speed. A battery’s capacity is a tank.
The inverter only cares about the speed. It must supply every watt your appliances pull at the same moment. The battery bank decides how long that lasts. A 48V 100Ah lithium bank holds about 4,800Wh, so a steady 5000W would drain it in under an hour once losses are counted.
There is a second distinction that causes most bad purchases: continuous versus peak. According to Samlex’s inverter FAQ, continuous output is what an inverter can deliver indefinitely, while surge output is meant for brief startup demands. A “5000W peak” inverter cannot run a 5000W load, because peak power is only available for a short time.
Is a 5000W Inverter Enough to Run a 5000W Load?
Only if its 5000W figure is a continuous rating, and even then it runs at 100% with no margin. Add headroom: a common rule is about 20% above the calculated load. Some guides suggest 20-30% to cover heat, aging, and extra loads added later. The Off Grid Benchmark inverter sizing guide covers the same approach. A municipal off-grid PV guideline from the City of Gilroy recommends sizing continuous inverter output to at least 125% of the calculated continuous load, with surge and other derating factors handled separately.
- 5000W x 1.20 = 6000W
- 5000W x 1.25 = 6250W (the multiplier used for continuous loads)
- 5000W x 1.30 = 6500W
So a 5000W load points to a 6000W inverter as a practical minimum. If you buy 5000W, you run at 100% all the time. That means more heat, louder fans, and shutdowns on hot days.
Should I buy a 6000W or 6250W inverter for a 5000W load?
Either works. 6000W gives 20% headroom and 6250W gives 25%, so pick whichever the model line offers and prioritise surge rating, waveform, and battery voltage over the 250W difference. Few makers sell exactly 6250W, so 6000W or 6500W are the usual choices.
| Your situation | Recommended continuous rating | Why |
|---|---|---|
| Real simultaneous load under about 4,000W | 5000W | Already has 20%+ headroom |
| Steady 5000W, resistive or electronics | 6000W-6250W | 20-25% margin for heat and aging |
| 5000W including a pump or compressor | 6000W-6500W with a high, long surge rating | Startup adds to the running load |
| Several motors that may start together | 8000W or more, or staggered starts | Stacked surges exceed the 6000W class |
What safety margin and derating should be applied?
Apply 20-25% headroom to the load, then read the datasheet for the maker’s own derating. Many inverters reduce output at high ambient temperature, so a unit rated 6000W at room temperature may deliver less in a hot RV bay or an unventilated shed. Leave the clearance the manual specifies around the heat sink and fan, and do not install it in a sealed box.
How Much Surge Power Does a 5000W Load Need?
It depends on what the load is. A purely resistive 5000W load (heaters, kettles, ovens) needs almost no surge. A motor-driven load can need several times its running watts for a moment. Refrigerators, well pumps, and compressors may need about 2-3 times their running watts, and Samlex lists higher typical surge factors for some loads. Many inverters hold their surge rating for only a few seconds, and the time varies by model.
| Load type | Typical surge factor (Samlex) | Example: 1,000W running |
|---|---|---|
| Heater, kettle, incandescent | About 1x (resistive) | 1,000W |
| Sump pump, furnace fan, industrial motor, circular saw | 3x | 3,000W |
| Air compressor | 4x | 4,000W |
| Refrigerator, freezer | 5x | 5,000W |
Samlex advises adding the startup surge to the running load rather than treating the inverter’s peak rating as continuous capacity. That is the rule used in the examples below.
- Only resistive loads (heaters, kettles, ovens): size at 6000W.
- One large motor (pump, compressor): add its extra startup watts to your peak and check the surge spec.
- Several motors that may start together: move up to 8000W or stagger the startups.
How Many Amps Does a 5000W Inverter Draw From a 12V, 24V, or 48V Battery?
About 463A at 12V, 231A at 24V, or 116A at 48V once a typical 90% inverter efficiency is included. Power equals volts times amps, so lower voltage means much higher current for the same watts. That current runs through your battery, fuse, and cable. At 90% efficiency, the battery must supply about 5556W for a 5000W load.
| Battery voltage | Amps at 5000W (ideal) | Amps at about 90% efficiency |
|---|---|---|
| 12V | ~417A | ~463A |
| 24V | ~208A | ~231A |
| 48V | ~104A | ~116A |
The 90% figure is an example. Check your model’s rated efficiency. At 12V, you need very thick cable, a large fuse, and batteries rated for that discharge. For a 5000W-class system, 48V is the usual choice. It keeps cable size and heat manageable. The inverter basics and selection guide from Solar Electric Supply explains voltage matching further.
What Cable Size and Fuse Are Needed for a 5000W Inverter?
Use the cable and fuse sizes in the inverter’s manual and your local electrical code, and size both for the full DC current, not the AC load. As a starting point, a fuse rated at about 125% of maximum continuous DC current is a common rule of thumb.
| Battery voltage | Continuous DC current (90%) | Fuse at 125% (approx.) |
|---|---|---|
| 12V | ~463A | ~580A |
| 24V | ~231A | ~290A |
| 48V | ~116A | ~145A, so the next standard size up |
The 12V figures show why that voltage is impractical at this size. Fuses and breakers must be DC-rated for the bank voltage, and a DC disconnect should sit close to the battery.
Cable length matters as much as thickness. Owners frequently report low-voltage shutdowns when cables are too long or undersized, because voltage drop under 100+ amps pulls the inverter’s input below its cutoff just as load peaks. Keep the inverter close to the batteries, use the shortest equal-length positive and negative runs, and crimp lugs properly. A warm cable or lug at full load is a warning sign.
How Long Will a Battery Run a 5000W Load?
A 48V 200Ah battery stores 9600Wh nominally (48V x 200Ah). At 90% usable energy that is about 8.64kWh, which runs a constant 5000W load for roughly 1.7 hours (8640 / 5000 = 1.73). That is a theoretical best case. Battery discharge-rate limits, cold temperature, and reserve capacity all shorten it.
| 48V battery bank | Nominal energy | At 90% usable | Hours at 5000W |
|---|---|---|---|
| 100Ah | 4,800Wh | 4,320Wh | ~0.86 |
| 200Ah | 9,600Wh | 8,640Wh | ~1.73 |
| 400Ah | 19,200Wh | 17,280Wh | ~3.46 |
What size battery bank is required for a 5000W inverter?
It must meet two tests: energy for your runtime, and a maximum continuous discharge of at least 116A at 48V (231A at 24V). A 100Ah battery rated for only 100A continuous cannot feed this inverter at full load, however much energy it holds. Multiply 5.0kW by the hours you need, divide by 0.9, and check the bank’s discharge rating. Most real loads cycle on and off, so average draw is often far below 5000W.
Do I Need a Pure-Sine-Wave Inverter for a 5000W Load?
Yes, for nearly any mixed or motor-driven load. Samlex’s FAQ explains the difference between pure and modified sine output, and owners report that pure-sine output works well with sensitive electronics and household appliances. Modified sine can be acceptable for simple resistive heating, but at 5000W the price gap is small compared with the risk of buzzing, extra heat, or devices that refuse to run.
Can a 5000W Inverter Run Motors, Refrigerators, Pumps, or Air Conditioners?
Yes, if the combined running watts plus the largest startup surge fit within the continuous and surge ratings. Check each appliance’s nameplate for running watts and the startup requirement.
| Appliance | Main concern | What to do |
|---|---|---|
| Refrigerator or freezer | High startup factor (Samlex lists 5x) | Allow for 5x running watts at startup |
| Well or sump pump | 3x startup (Samlex) | Start it first, before other loads |
| Air compressor | 4x startup (Samlex) | Confirm surge duration on the datasheet |
| Air conditioner | Compressor startup, often a long run time | Use the nameplate figures and consider a soft starter |
| Heater, kettle, oven | Sustained full load | Size for 100% continuous plus headroom |
For load management, stagger startups, run heavy resistive loads on a timer or switched circuit, and keep a margin so a sudden extra appliance does not push the inverter past its rating.
Worked Examples: Resistive, Mixed, and Motor Loads
Example 1: 5000W resistive heater
Four 1,250W heating elements total 5000W with no meaningful surge. Target 6000-6250W continuous at 48V, drawing about 116A. This is the simplest case, but it also loads the inverter hardest for long periods, so ventilation and cable quality matter most.
Example 2: mixed backup load
Say you plan this backup load:
| Appliance | Running watts | Startup watts |
|---|---|---|
| Refrigerator | 200 | ~600 |
| Well pump | 1,100 | ~3,300 |
| Microwave | 1,200 | 1,200 |
| Space heater | 1,500 | 1,500 |
| Lights and electronics | 1,000 | 1,000 |
| Total | 5,000 |
Step 1, continuous: 5000W x 1.20 = 6000W.
Step 2, surge: If the pump starts while everything else runs, add its extra 2,200W. Peak is about 7,200W. Add the fridge starting too, and it is about 7,600W. If you apply Samlex’s 5x factor to the fridge instead of 3x, its startup is about 1,000W and the peak rises by roughly 400W.
Step 3, check the spec: Pick a 6000W inverter whose surge rating covers at least 7,600W. Many list around twice their continuous rating, but confirm it and the duration.
Example 3: motor-driven load
Suppose a workshop runs 3,500W of steady loads plus a 1,500W air compressor, for 5000W total. At Samlex’s 4x factor, the compressor needs about 6,000W to start. If it starts while the other loads run, peak demand is 3,500W + 6,000W = 9,500W. A 6000W inverter needs a surge rating above that for the full startup time, otherwise move to an 8000W unit or switch the other loads off while the compressor starts. These figures are an illustration, so substitute your nameplate values.

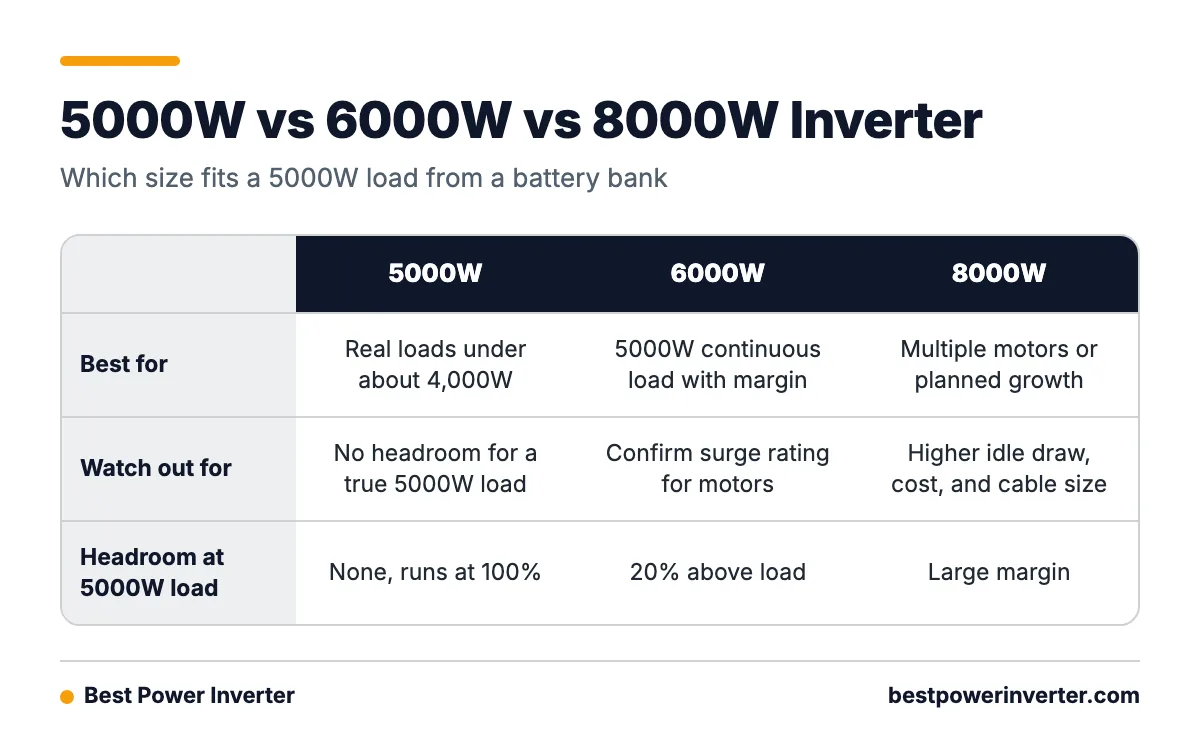

5000W vs 6000W vs 8000W

| Inverter size | Best for | Watch out for |
|---|---|---|
| 5000W | Real loads under about 4,000W | No headroom for a true 5000W load |
| 6000W | 5000W continuous load with margin | Confirm surge rating for motors |
| 8000W | Multiple motors or planned growth | Higher idle draw, cost, and cable size |
Common Sizing Mistakes to Avoid
- Sizing to running watts only and ignoring startup surge.
- Treating battery amp-hours as if they set inverter size.
- Choosing 12V for a 5000W system without checking cable and battery limits.
- Forgetting efficiency losses on the battery side.
- Confusing a peak rating with a continuous rating.
- Oversizing too far. A much larger inverter wastes money and has a higher idle draw.
Watts vs VA
Size by watts. VA is volts times amps, and watts equal VA times power factor. Resistive loads have a power factor near 1, so VA and watts match. Motors and electronics can be lower. A 5000W load at 0.8 power factor needs 6,250VA. If an inverter is rated only in VA, check its watt rating too.
Quick Buyer Checklist
- Total continuous watts of everything that runs together.
- Add 20-25% headroom.
- Continuous rating (not peak) of at least 6000W.
- Largest motor startup surge, and the inverter’s surge rating and duration.
- Waveform: pure sine for mixed and motor loads.
- Battery voltage: 24V or 48V preferred at this size.
- Battery bank maximum continuous discharge in amps.
- Inverter efficiency, and cable length, cable size, and fuse rating for the current.
- Ventilation clearance and the manufacturer’s temperature derating.
What do owners say?
Owners like
- Quiet operation compared with a fuel generator
- Clear displays showing load percentage and battery voltage
- Reliable operation for backup loads when the battery bank and cables are adequately sized
- Pure-sine output works well with sensitive electronics and household appliances
Common complaints
- Fans become loud or run continuously during sustained high-load operation
- Low-voltage shutdowns occur when battery cables are too long or undersized
- Some units trip during motor startup despite advertising a high peak-watt figure
- Budget models may overheat or throttle near their continuous rating
- Setup menus and manuals can be unclear on some models
Summarised from owner reviews and long-term user reports; individual experiences vary.
Frequently Asked Questions
How big of a power inverter do I need for a 5000W battery?
Think of it as a 5000W load. A 5000W inverter is the minimum, and a 6000W inverter is the safer pick with headroom. Then confirm the surge rating and that your battery bank can deliver the current.
Do I need a 5000W inverter for a 5000W load?
You need at least that, but it leaves no margin. Running at full rating all day adds heat and can trigger overload shutdowns. A 6000W unit is the practical choice.
How much headroom should I add when choosing an inverter?
Add about 20% as a common rule. Some guides use 20-30% for heat, aging, and future additions. For 5000W, that means 6000-6500W.
Is inverter size based on watts, VA, or both?
Size by watts. VA matters when a maker lists only VA or when loads have a low power factor. Convert using watts = VA x power factor.
What happens if my inverter is too small?
It may shut down on overload, trip on startup surge, run hot, or wear out early. Motor loads like pumps are the usual trigger.
Is peak power the same as continuous power?
No. Peak or surge power is available only briefly for startups. A “5000W peak” inverter cannot sustain a 5000W load.
Is 12V a bad choice for a 5000W inverter?
For continuous use, generally yes. It draws about 463A at 90% efficiency, which demands very heavy cable, a large DC fuse, and batteries rated for that discharge. 24V halves the current and 48V cuts it to about a quarter.
