To make a 12V to 220V power inverter, gather necessary components and follow a detailed circuit diagram. Ensure safety precautions are in place.
Creating a power inverter at home can be an exciting and rewarding project. It involves converting 12V DC from a battery to 220V AC, suitable for household appliances. This DIY project requires components such as a transformer, transistors, capacitors, and a heat sink.
Sourcing a reliable circuit diagram is crucial for a successful build. Always follow safety guidelines to prevent electrical hazards. With patience and precision, you can build a functional power inverter, providing an alternative power solution for emergencies or off-grid living. This project not only enhances your technical skills but also offers a practical application for everyday use.

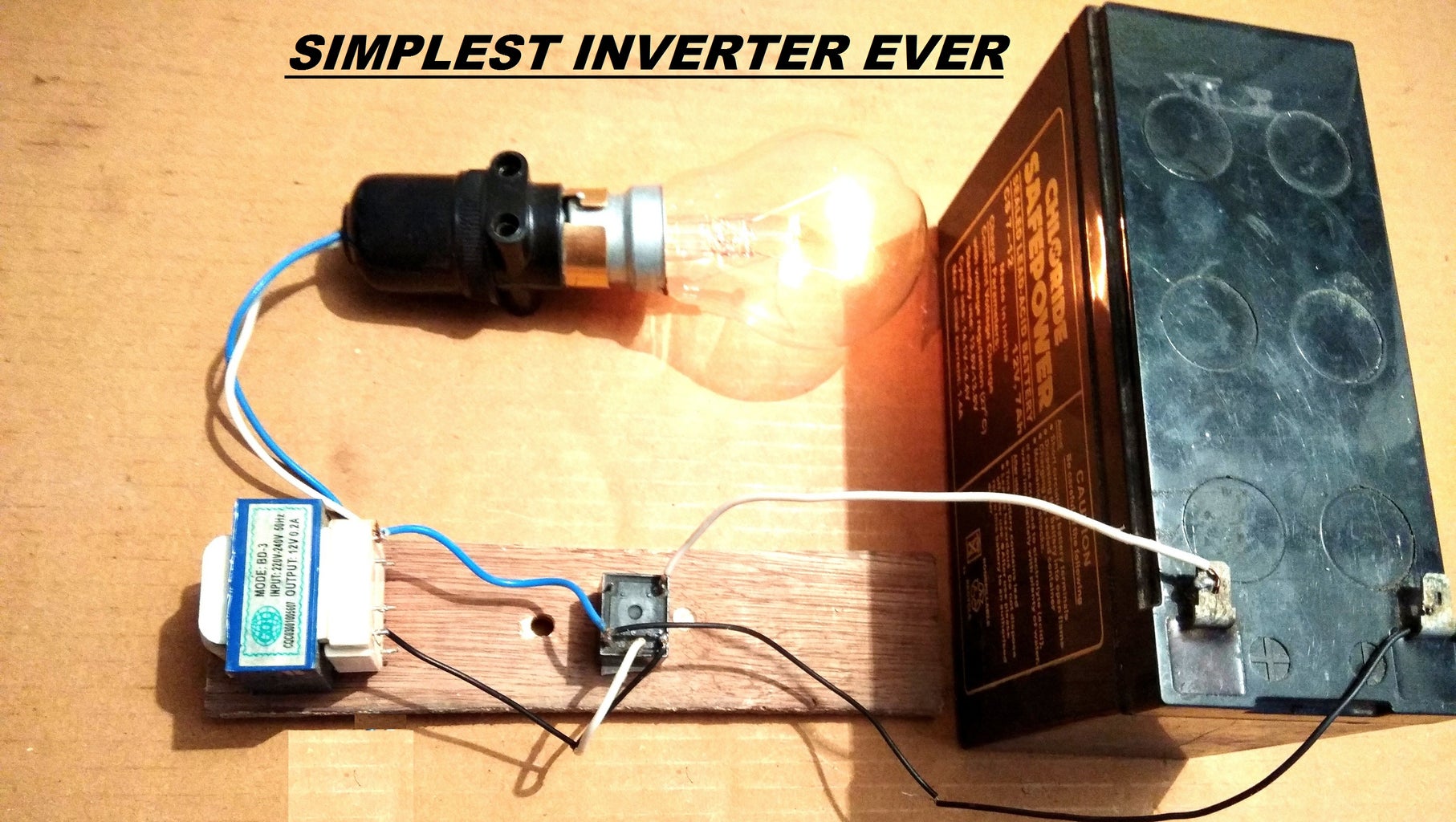

Credit: www.instructables.com
Table of Contents
Materials Needed
You need a 12V battery. Also, get a transformer. It should step up 12V to 220V. You also need MOSFET transistors. These will help in switching. Don’t forget the oscillator circuit. It will generate the required frequency. Grab some diodes and capacitors. They will help in filtering and rectifying the current. Resistors are also needed for controlling current flow. Lastly, get a PCB board for assembling the components.
A soldering iron is required. It will help in connecting components. Get some solder wire too. It will help in creating connections. Wire cutters are needed for trimming wires. Screwdrivers will help in tightening screws. Multimeter is important for testing connections. Heat shrink tubes will insulate the wires. Lastly, electric tape will help in covering connections.

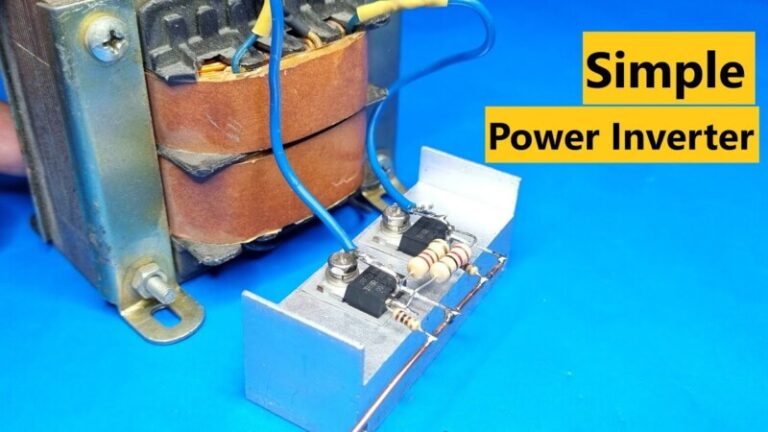

Credit: www.instructables.com
Safety Precautions
Always be careful when dealing with electricity. It can be very dangerous. Make sure your hands are dry. Wet hands can cause electric shocks. Turn off the power before you start. Use insulated tools to avoid shocks. Keep children away from the work area. Follow all safety instructions carefully.
Wear protective gear to stay safe. Use rubber gloves to protect your hands. Safety goggles keep your eyes safe from sparks. Wear a mask to avoid inhaling fumes. Use insulated shoes to prevent shocks. Always wear long sleeves and pants to protect your skin.
Building The Circuit
Use a simple circuit diagram to build the inverter. The diagram shows the connections between components. Follow the diagram closely to avoid mistakes. Ensure all parts are connected properly. Safety is very important when working with electricity. Double-check your connections before powering the circuit. The transformer will convert 12V DC to 220V AC.
Place the components on a breadboard for easy testing. Arrange the transistors, capacitors, and resistors as shown in the diagram. Make sure the transformer is correctly aligned. Use jumper wires to connect the components. Keep the wires neat to avoid confusion. After placing all parts, check each connection with a multimeter. This ensures that there are no short circuits. Proper placement helps the inverter work effectively.
Assembling The Inverter
Start by gathering all the needed components. These include resistors, capacitors, and transistors. Place each component on the circuit board. Use a soldering iron to secure the components. Ensure each joint is shiny and firm. Avoid cold solder joints. They can cause the inverter to fail. Double-check each connection. This ensures the circuit works well.
Place the assembled circuit board on a strong base. Use screws to secure the board. This prevents it from moving. Connect the input and output wires to the board. Attach the 12V battery to the input. Connect an output socket for the 220V output. Ensure all connections are tight. Loose connections can cause issues. Test the inverter with a small load first.
Testing The Inverter
Ensure all connections are secure. Check that the wires are not frayed or damaged. Confirm that the battery is charged and connected properly. Inspect the circuit board for any loose components. Look for any burn marks or smell of burnt electronics.
If the inverter does not power on, check the fuse. Replace it if blown. Verify the input voltage is correct. Ensure the switch is in the on position. Listen for any unusual sounds from the inverter. If there is no output, check the output connections and devices.
Credit: www.youtube.com
Enclosure And Final Setup
Select a sturdy and heat-resistant case. Plastic cases are easy to work with. Ensure the case has enough space for all components. The case should allow for proper ventilation. Holes can be drilled for wires and switches. Make sure the case is not conductive to avoid short circuits.
Connect the positive wire to the inverter’s positive terminal. Connect the negative wire to the inverter’s negative terminal. Secure all connections tightly. Avoid loose connections to prevent sparks. Test the setup with a multimeter before finalizing. Ensure that all components are fixed in place. Properly insulate any exposed wires. Double-check all connections for safety.
Practical Uses
Power inverters can run small home appliances. They convert 12V DC to 220V AC. Use them to power lights, fans, and even small TVs. They are useful in areas with frequent power cuts. They help keep essential devices running. They can also charge mobile phones and laptops. Ensure the inverter’s wattage meets your appliance needs.
Power inverters provide emergency power during outages. Keep them ready for sudden blackouts. They can power emergency lights and radios. Ensure you have a fully charged battery. This helps maintain communication and safety. Inverters are portable and easy to use. They are a reliable source of backup power. Always have an inverter for emergencies.
Maintenance Tips
Check the connections regularly. Loose connections can cause power loss. Inspect the wiring for any signs of wear. Replace any worn-out wires immediately. Look at the fuses. Make sure they are not blown. A blown fuse can stop the inverter from working. Clean the terminals to prevent corrosion. Use a brush to clean them.
Overheating is a common problem. Make sure the cooling fan is working. If the fan is not working, replace it. Voltage drops can occur. Check the battery and charge it if needed. Sometimes, the inverter may not turn on. Verify the power switch is in the ON position. Look at the LED indicators. They can show if there is an issue.
Frequently Asked Questions
What Materials Are Needed To Make A Power Inverter?
To make a power inverter, you need a transformer, transistors, resistors, capacitors, and a 12V battery. You’ll also require heat sinks, a PCB, and connecting wires.
How Does A 12v To 220v Inverter Work?
A 12V to 220V inverter converts DC from a 12V battery to AC. It uses electronic components to step up the voltage.
Can I Make An Inverter Without Prior Experience?
Yes, you can, but it’s recommended to have some basic electronics knowledge. Following detailed guides and safety precautions is crucial.
Is It Safe To Make A Power Inverter At Home?
Safety depends on following guidelines and precautions. Use insulated tools and avoid working with live circuits. Always double-check connections.
Conclusion
Creating a 12V to 220V power inverter at home is both rewarding and practical. Follow our step-by-step guide for success. Ensure safety precautions to avoid mishaps. Enjoy a reliable power source for your devices. Share your experience and this guide with friends.
Happy building!
